小背包---BD SPHYNX 35和MAMMUT CERVIN 35

[复制链接]
发表于 2005-12-28 21:00 | 显示全部楼层 |阅读模式

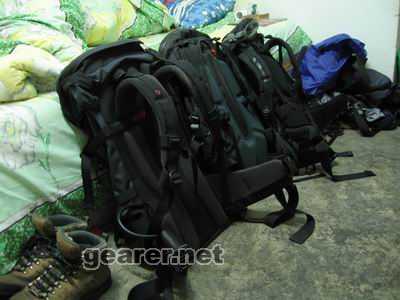

这两个背包都是35L的。
都是做技术用途的。
设计上各有特色。
让我们一起来欣赏一下。
下面是两款包各自的官方资料:

BD Sphynx 35

WEIGHT: 1.13 KG (2 LB 8 OZ)
VOLUME: 35 L (2136 CU IN)

The Sphynx is a light and durable ice and rock pack. With its traditional top-loading design, the Sphynx holds most everything a party of two could need for climbing. Built from burly 420-denier nylon and Ballistics fabric, the Sphynx is tough yet weighs less than three pounds. A single removable aluminum stay, molded-foam back panel and a cushy waistbelt offer maximum support and comfort. Key features, including ice axe, crampon and rope straps, as well as Ice Clipper slots on the waistbelt, make this pack well suited for all-season climbing.

DETAILS
Y-Rod Our unique Y-Rod aluminum stay, with no welded points, provides support where needed, yet enough flexibility to give total freedom of movement. Cut and bent from aluminum rod stock, the Y-Rod offers a better strength-to-weight ratio than more common aluminum pack stays.

SilNylon Our SilNylon is silicone and PU-coated nylon—a unique material with a high strength-to-weight ratio, water-shedding capability and the ability to self-heal small punctures. SilNylon is used throughout our pack line for its light weight and excellent strength.

Ergo-molded Suspension Ergo-molded foam back panels, waistbelts and shoulder straps are anatomically shaped to eliminate pressure points while transferring the load evenly over areas of contact. Our ergo-molded suspensions allow for a custom-fit feel with excellent support.

Die Cut Hypalon Two-layer Hypalon accessory loops are incredibly durable and streamlined as opposed to the clutter of traditional webbing accessory loops. Grippy and extremely tough, Hypalon is ideal for attaching ice and snow gear to your pack.


Burly materials and construction offer good durability
Great size for carrying most everything you need
Key features include ice axe and crampon straps
Single, removable stay offers excellent support

零售价约 130 USD

http://www.bdel.com/gear/sphynx.php



MAMMUT CERVIN 35

Material Cordura nylon
Approximate volume 2,136 cubic inches /35L
Average weight 3 lbs. 11 oz.  /1.6kg

The technical Mammut Cervin pack--French for "Matterhorn"--is rugged enough and decked-out enough to climb the alp for which it's named.

Rock-tough Cordura 500 denier upper shell will stand up to years of abuse; 1,000 denier bottom won't give way when the pack takes a hard drop

Sleek design keeps the weight centered on your back for better balance and provides room for arms to move backward during climbs
Two internal stays provide support and can be removed and formed to more closely match the shape of your spine

Non-removable lid buckles to the main pack in front; offers one spacious pouch accessed outside and another, smaller pouch accessed inside

Long front pouch is side zipped and large enough to carry a set of crampons

Spacious main pouch is accessed through the draw-string top or by zipper from the side

Dual compression straps on each side stabilize the load and center the weight toward the center of your back

Storm sleeve protects from weather entering at the top of the main pouch; can be extended for additional storage space

Additional tie-down features include two ice axe attachments, rope attachment and gear loops

Mesh-covered foam pads contour the pack to the carrier's back and wick away persperation

A wide air channel follows the spine, venting away excess body heat
Thickly padded shoulder straps conform comfortably over the traps and along the chest; sternum strap keeps them centered

Load lifters pull the weight into the back to optimize center of gravity and lift the shoulder straps off the trap muscles

零售价约 140 USD


http://mammut.com.pl/cervin.htm
smallbag IMG_0001.JPG
 楼主| 发表于 2005-12-28 21:07 | 显示全部楼层
BD SPHYNX
 楼主| 发表于 2005-12-28 21:07 | 显示全部楼层
MAMMUT CERVIN
 楼主| 发表于 2005-12-28 21:11 | 显示全部楼层

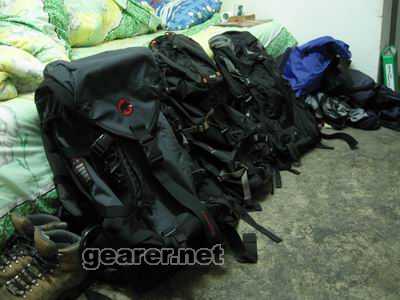

咱们看装备,
老规矩,
看看人家是怎么设计的,
怎么考虑的。
其他的什么不着边际的东西咱不关心。
这两款包都是攀登技术包。
SPHYNX是针对攀冰攀岩,
CERVIN是针对A式登山。
在用途上,
有所区别。
这种区别,
也直接反映在他们的设计上。
smallbag IMG_0002.JPG
 楼主| 发表于 2005-12-28 21:19 | 显示全部楼层

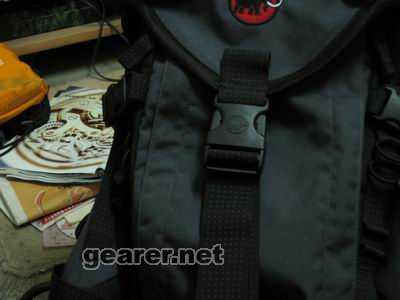

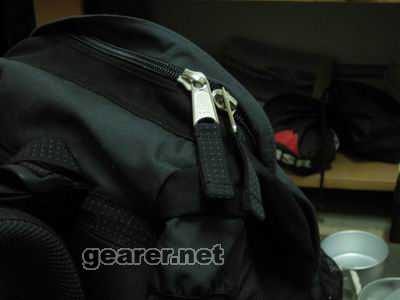

在设计风格上,
CERVIN给人的感觉就是粗朴,结实。
拉练用的是特大号的YKK,
用的WOO JIN扣件也非常粗大。
没有采用防水拉练。
用的材料也很吓人,
这个小包的面料是500D的CORDURA,
底用的是1000D的CORDURA。
这样的包应该能让你用上个十年八年的。
奇怪的是,
这个小包居然分了大中小几个码子的背负,
这是欧洲背包中比较少见的。
简直就是另类。

[ Last edited by 快乐乌鸦 on 2005-12-28 at 09:21 PM ]
smallbag IMG_0003.JPG
smallbag IMG_0004.JPG
 楼主| 发表于 2005-12-28 21:29 | 显示全部楼层

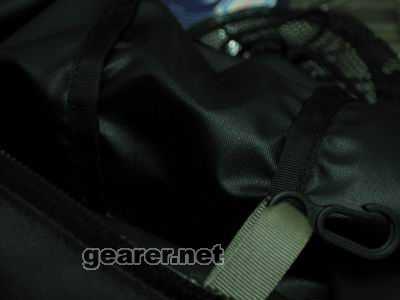

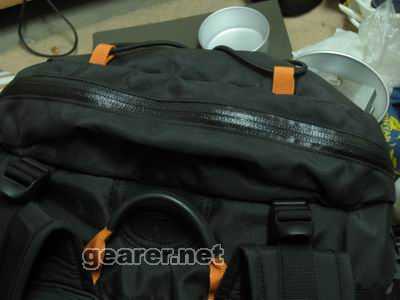

SPHYNX给人的感觉就摩登多了,
头包用的是防水拉练,
材料是420D的涂硅尼龙。
现代感十足。
和CERVIN对比的话,
低调的CERVIN简直就是土的掉渣的民工。
让人惊讶的是,
SPHYNX的背负居然是不分大中小码的,
这在美式背包里面,
BD算是个另类了。

[ Last edited by 快乐乌鸦 on 2005-12-28 at 09:31 PM ]
smallbag IMG_0027.JPG
smallbag IMG_0030.JPG
 楼主| 发表于 2005-12-28 21:51 | 显示全部楼层

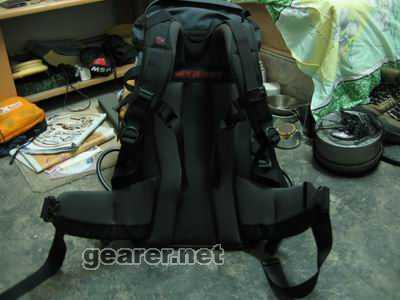

背负上,

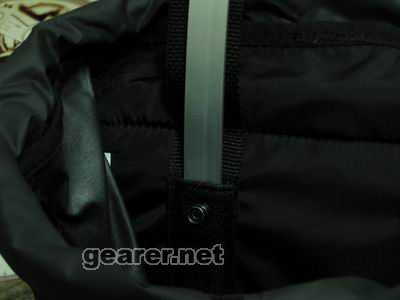

CERVIN采用的是双铝条支撑,
铝条可移除,
横向缝了一条细塑胶板,
形成一个稳固支撑。
背上铝条位置缝上EVA泡棉,
做背部缓冲,
泡棉间自然形成一个通风的凹槽。
整个结构非常简约。
smallbag IMG_0008.JPG
smallbag IMG_0013.JPG
smallbag IMG_0014.JPG
 楼主| 发表于 2005-12-28 21:57 | 显示全部楼层

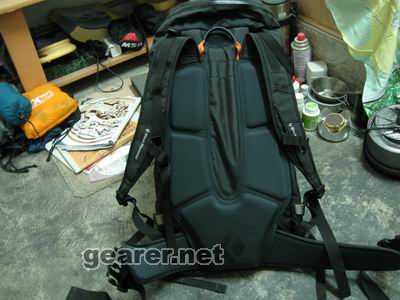

和CERVIN的II字布局不同,
SPHYNX的背部是个Y字,
采用的是高密度的EVA泡棉。
而且,
其支撑是单根铝条。
在铝条的封闭固定方式上,
CERVIN采用的是金属扣的方式,
而SPHYNX用的是更常用的魔术贴。
CERVIN的种种变态做法使他的重量达到1.6KG,
而SPHYNX只有1.1KG。
smallbag IMG_0023.JPG
smallbag IMG_0033.JPG
 楼主| 发表于 2005-12-28 21:58 | 显示全部楼层
未完待续...
发表于 2005-12-28 22:32 | 显示全部楼层
一直很喜欢小象的东西
小象的东西不光包粗犷啊,softshell也比多数牌子的看着结实粗犷,印象中见过一件小象的softshell那个面料看着都不像衣服了,像大背包的面料了.
5楼第二个照片看着太糙了 ……
小象的东西国内没有卖的吧 ? 好像香港有,而且我在美国网站上也很少看到有.所以我买一条打折小象softshell裤子的愿望至今还没实现 ……
发表于 2005-12-28 22:45 | 显示全部楼层
哎........谁帮乌鸦PS一下啊?

一团浆糊诶,当然我显示器也一般般
发表于 2005-12-28 23:06 | 显示全部楼层
一贯是这样的啊

传说中的后现代学院派意识流跟进传统摄影法
发表于 2005-12-29 00:22 | 显示全部楼层
乌鸦家里除了睡觉的地方好像别的地方全都是户外用品了。。。。

说到象的阿式包  ice 系列的也不错,有35 ,45的,用过ice35的,感觉不错。

在这里,全是阿式的包

http://www.mammut.ch/mammut/katalog.asp?dart=3&did=61
发表于 2005-12-29 00:24 | 显示全部楼层
发表于 2005-12-29 00:51 | 显示全部楼层
恩,楼上这包,我们灰灰也在挣扎,你发上来估计又刺激他了!
发表于 2005-12-29 08:05 | 显示全部楼层
Originally posted by dreamerz at 2005-12-29 12:51 AM:
恩,楼上这包,我们灰灰也在挣扎,你发上来估计又刺激他了!


那包? 原价 136欧,上上个月在打折,69欧一个,就败了一个。


象的都是好东西啊,西藏登山队的哥们看到瑞士登山队用的这些象的装备都流口水呢,别说我们了。。。。
发表于 2005-12-29 09:01 | 显示全部楼层
bd的背包很多设计很象象阿。
看看象的alpine背包最大没有超过45L的,再看看某些扶椅登山者写的文章说alpine式要个80L的大包因为所有的东西都要自己背。呵呵
发表于 2005-12-29 10:14 | 显示全部楼层
Originally posted by dreamerz at 2005-12-29 00:51:
恩,楼上这包,我们灰灰也在挣扎,你发上来估计又刺激他了!


不挣扎了,等这个象打折了再说,俺一冲动又掉进另一个毒窟了~~~~
 楼主| 发表于 2005-12-29 23:35 | 显示全部楼层

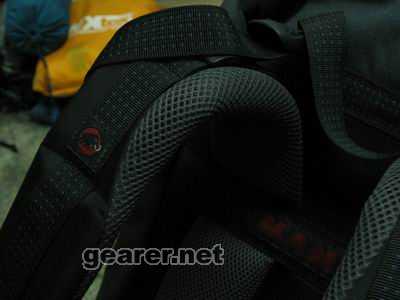

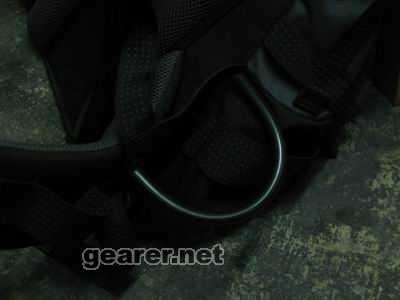

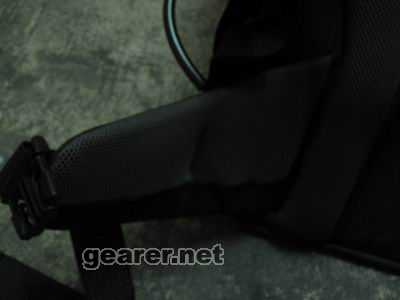

CERVIN的肩带,
泡棉很丰厚,
可以看到这个包的设计主导思想就是:结实,舒适。
腰带是和包体一体缝合的,
但足够软,
可以在配合安全带的时候绕到包体后面去。
而且,
腰带比一般背包要薄很多。
考虑到腰带和安全带摩擦的的问题,
而且泡棉比较疏松柔软,
腰带内侧的泡棉下部使用一圈CORDURA尼龙加固。
smallbag IMG_0006.JPG
smallbag IMG_0009.JPG
smallbag IMG_0010.JPG
 楼主| 发表于 2005-12-29 23:42 | 显示全部楼层

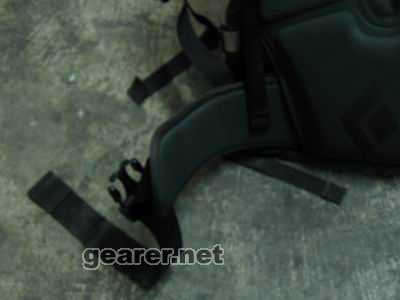

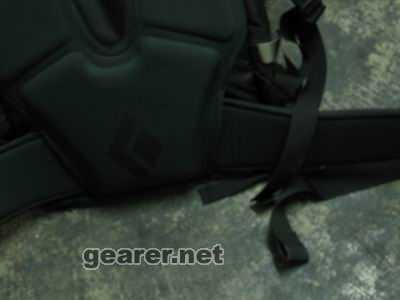

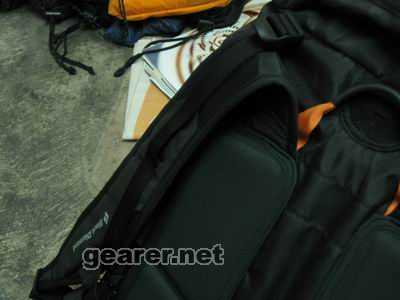

SPHYNX的肩带和腰带采用的是高密度EVA,
弹性很好,
肩带腰带比CERVIN薄很多。
而且,
SHPYNX的腰带是可拆卸的。
也没有象CERVIN一样有装备环。
这样的设计更加简洁,
但会让你更多考虑总体装备的协调配合。
BD应该是设想你使用SPHYNX的场合下,
安全带是必不可少的。
而CERVIN似乎可以适用更加广泛的范围。
这很符合BD一贯的风格,
那就是把装备的某样性能推到极至,
而不考虑它的通用性如何。
smallbag IMG_0024.JPG
smallbag IMG_0025.JPG
smallbag IMG_0026.JPG
