在淘宝上发现的Hilleberg Nallo 2 GT 帐篷图册

龙潜

为避免做广告的嫌疑，就不说出处啦，呵呵！

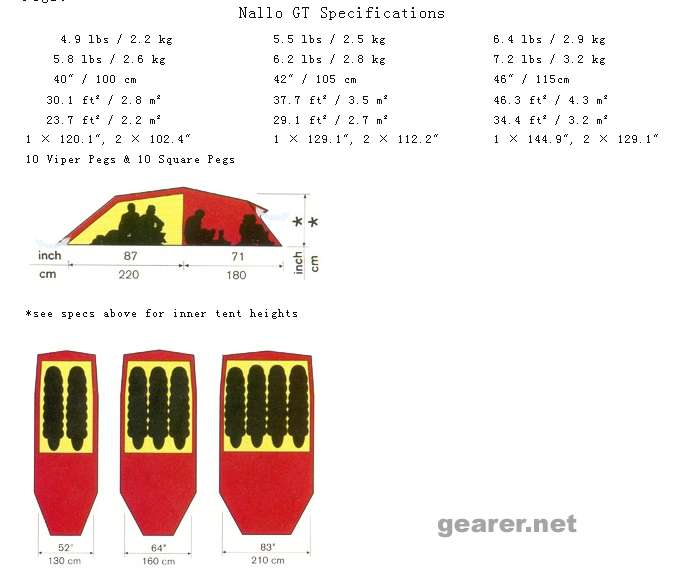

hillberg 是和bibler、stephenson并驾的三个顶级品牌之一，瑞典货，欧洲营幕天王，他家的NALLO 2 GT在多个户外杂志获编辑奖，四季帐，655欧元。最大特点就是兼具大面积和轻量，作为双层双人帐，仅门厅就2.2平米，加上卧室达到5平米，三帐杆，重量却只有2.2公斤。

Nallo 2 GT

曾獲多個戶外雜誌評為編輯之選，是Nallo 2的特大豪華版，坐擁特大前營，面積2.2平方米，加上內帳，總面積達5平方米，活動空間非常充足，而重量都只是2.2kg。

龙潜

图册1

[ 本帖最后由 龙潜 于 2007-6-28 09:16 编辑 ]

龙潜

图册2

彩云指南

呵呵，之前看过水电兄的隧道之后我就有一个想法，就是把两个水电兄那种隧道tarp拼起来，就实现了这种超大封闭式的隧道



[ 本帖最后由 彩云指南 于 2007-6-27 21:42 编辑 ]

龙潜

继续。

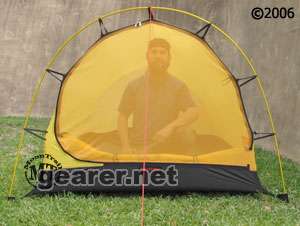

In the photo above, both the solid fabric panel and mesh panel of the front door of theNallo 2orNallo 2 GTinner tent have been unzipped and stowed in the interior side pocket. A 5'6" model is shown seated inside the inner tent for scale.

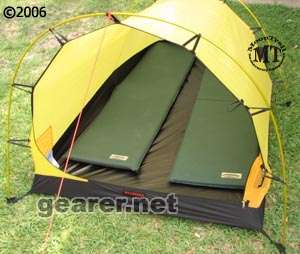

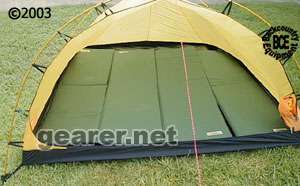

Photo above shows the HillebergNallo 2orNallo 2 GTinner tent with two standard size Therm-a-Rest sleeping pads placed inside the tent.

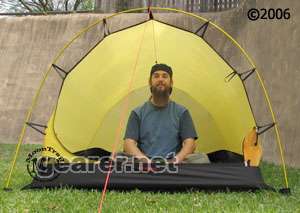

Image above shows a 5'11" model sitting inside theNallo 3orNallo 3 GTinner tent inner tent.

Image above shows the interior view of theNallo 3orNallo 3 GTinner tent with three Standard long Therm-a-rest sleeping pads. There is a bit of overlap in the sleeping pads at the foot of the tent.

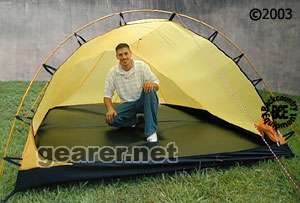

Image above shows the interior view of theNallo 4orNallo 4 GTinner tent with a 5'11" model inside.

Interior view of theNallo 4orNallo 4 GTinner tent with four Therm-A-Rest standard long sleeping pads. The four pads fit a little tight in the tent.

[ 本帖最后由 龙潜 于 2007-6-27 21:44 编辑 ]

龙潜

图册3

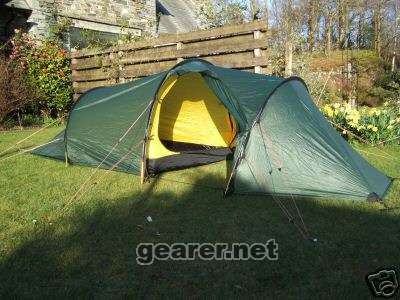

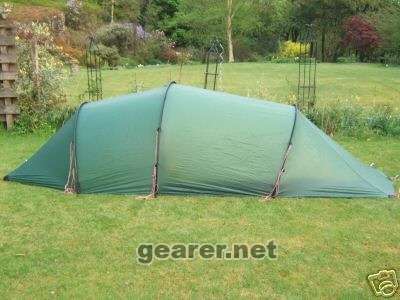

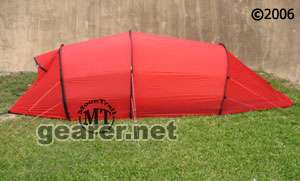

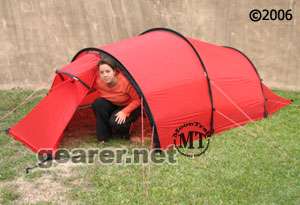

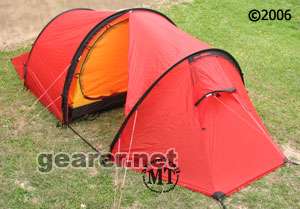

The Hilleberg Nallo GT uses a three pole tunnel design. The photo above shows the Nallo 3 GT with the small vestibule door zipped open and rolled to the side and a 5'6" model crouched in the vestibule

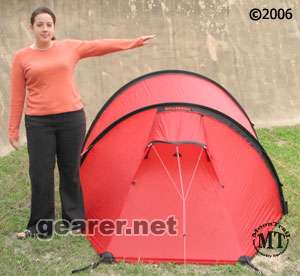

Image above shows a front view of the Nallo 3 GT with the vestibule door zipped shut and a 5'6" model for scale. The Nallo GTs' feature a zippered vent on the rear of the outer tent, and offer several options for increasing ventilation through the front vestibule.


The Front vent of the Hilleberg Nallo GT has a fabric panel for your venting needs. In the photo above, the fabric panel is fully opened and tied back to reveal the yellow inner tent.

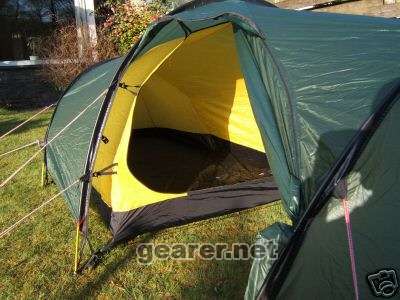

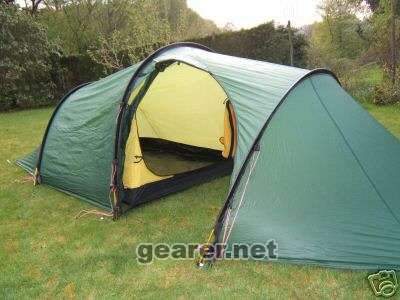

The Nallo GT tents feature a large vestibule door in addtion to the small vestibule door shown in the top left image of this page. An entrance on either side ensures you can always enter and exit out of the wind, and both doors can be open at the same time  for better access and venting.

View of the vestibule of the Nallo 3 GT throught the large vestibule door

Vestibule of the Nallo 3 GT with a 5'6" model kneeling inside.

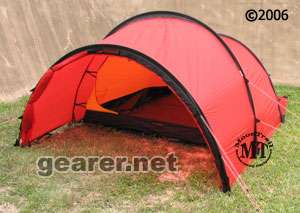

The Nallo GTs' entire front can be rolled up to create the tent equivalent of a covered patio.

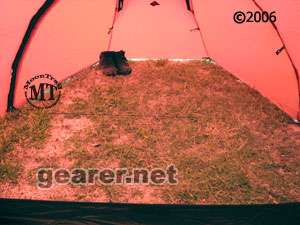

The photo above was taken from inside the Hilleberg Nallo 3 GT looking out into the vestibule with a pair of size 8 shoes shown inside for scale. The Nallo 2 GT & 4 GT vestibules are situated the same with larger dimensions.

[ 本帖最后由 龙潜 于 2007-6-27 21:49 编辑 ]

龙潜

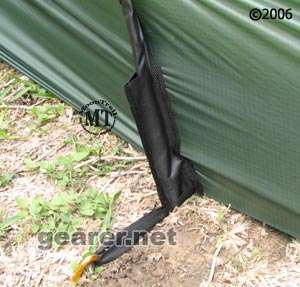

The Hilleberg Nallo tents feature blind pole pockets on one side of each pole sleeves. This enables fast and easy set-up by a single person. Pole slides in from opposite side of sleeve and is secured in closed pole pocket.

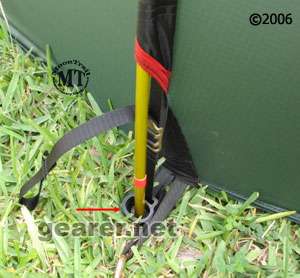

The photo above shows the opposite side of the pole sleeve at left. This opposite side of the sleeve has a plastic pole cup (shown by red arrow) with adjustable tensioners for ease of pitching and greater internal strength. The pole tensioners allow for optimal tension to be applied to the poles and their plastic cups have room for dual poles.

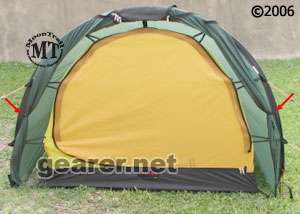

The photo above shows a rear view of the Hilleberg Nallo 2 with the zippered vent opened, and one side rolled up and secured with an elastic loop fastener (shown by red arrow). The other side can be rolled up in a similar way if desired. AllNalloandNallo GTinclude this feature.

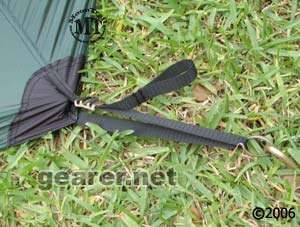

The photo above shows one of the vestibule stake out points with a metal stake loop and adjustable tensioners which are featured on allNalloandNallo GTtents.

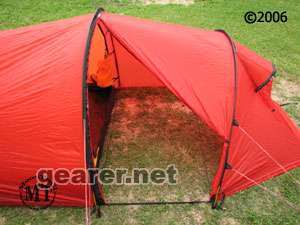

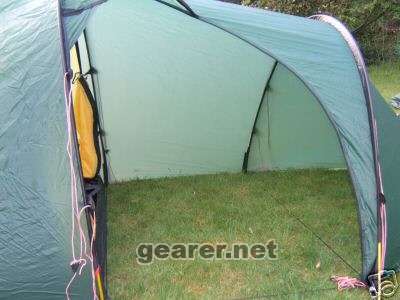

The photo above shows the outer tent used as a shelter separate from the inner tent. If desired, the inner tent can be added after the outer tent shelter is set up. Generally both the inner and outer tent are set up together.

[ 本帖最后由 龙潜 于 2007-6-27 21:58 编辑 ]

龙潜

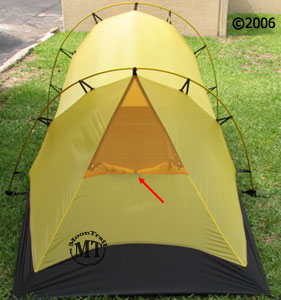

A triangular fabric panel at the rear of the Hilleberg Nallo inner tents (shown by red arrow) can be unzipped and rolled down to expose a mesh panel for ventilation.

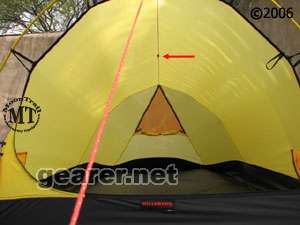

The photo above was taken from in front of the Hilleberg Nallo 2 inner tent looking through the open door towards the open vent at rear of the tent. The red arrow indicates a internal tensioning cord which runs along the peak of the ceiling. These same features are on allNalloandNallo GTmodels.

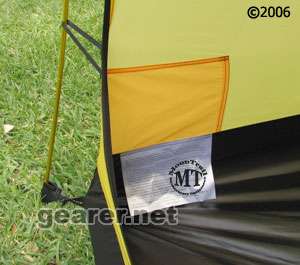

The Hilleberg Nallo inner tents feature two interior mesh pockets located on both sides of the front door which can be used as stash pockets for the door or other small gear.

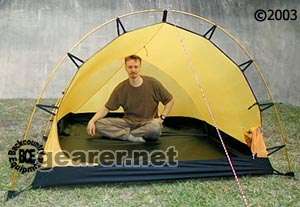

The photo above shows a 5'6" model sitting cross-legged inside the Hilleberg Nallo 2 inner tent. In the photo, the solid panel of the front door has been unzipped and rolled down to provide ventilation through the mesh door panel. This same feature is on all Nallo and Nallo GT models.

The photo above shows the Hilleberg Nallo 2 with the front vestibule rolled up and fastened to the sides of the tent (buckles shown by red arrows). The vestibule can be used in several different configurations to adjust for ventilation and shelter needs. The Nallo 2 inner tent is suspended from the inside of the outer tent by elastic loops with toggles. This same feature is on all Nallo and Nallo GT models.




------------------------------------The End------------------------------------------

[ 本帖最后由 龙潜 于 2007-6-27 22:04 编辑 ]

xgwu

这是我相当心仪的一款帐篷。
那个图册，在他们当地可以免费索取的。

欧洲的价格，怎么跟北美的价格，相差很多？

天山马贼

10.jpg明明是我的仙女座啊........

双剑橡叶

模块化设计

免贵姓陈

原帖由 <i>天山马贼</i> 于 2007-6-27 22:49 发表<br />
10.jpg明明是我的仙女座啊........

<br />


不知道淘宝上的怎么搞出来的图册，混杂了05款，06款，仙女座，ebay卖家图片，官方图片，moontrail网站图片，真是够乱的，而且帐篷不只2.2公斤，不算地布2.6公斤。

jameszhou

原帖由 <i>免贵姓陈</i> 于 2007-6-28 08:16 发表<br />
&lt;br /&gt;<br />
<br />
<br />
不知道淘宝上的怎么搞出来的图册，混杂了05款，06款，仙女座，ebay卖家图片，官方图片，moontrail网站图片，真是够乱的，而且帐篷不只2.2公斤，不算地布2.6公斤。

<br />


恩, 看来这个卖家的功夫也做的很足了,旁征博引啊；

免贵姓陈

还好没用我自己拍的图片，要不告他侵权！呵呵

龙潜

原帖由 <i>天山马贼</i> 于 2007-6-27 22:49 发表<br />
10.jpg明明是我的仙女座啊........

<br />

十分抱歉，我确实不清楚这张照片的出处，只是原模原样的就从图册里拷过来了。我已经删了帖子里的这张照片，请老兄谅解。

赵本山

原帖由 <i>免贵姓陈</i> 于 2007-6-28 08:16 发表<br />
&lt;br /&gt;<br />
<br />
<br />
不知道淘宝上的怎么搞出来的图册，混杂了05款，06款，仙女座，ebay卖家图片，官方图片，moontrail网站图片，真是够乱的，而且帐篷不只2.2公斤，不算地布2.6公斤。

<br />


2.2 和 2.6， 貌似他是混淆了 Nallo 和 Nallo GT 的重量

solartouch

Nallo 2 GT，官方网站上标示最小重量4 lbs 14，合约2211g，故有2.2一说

solartouch

原帖由 <i>xgwu</i> 于 2007-6-27 22:18 发表<br />
这是我相当心仪的一款帐篷。<br />
那个图册，在他们当地可以免费索取的。<br />
<br />
欧洲的价格，怎么跟北美的价格，相差很多？

<br />

请教下北美什么价格？哪个网站可以查到？

卍明仔卍

留意可能不是2007年版的nallo 2 gt,

天山马贼

原帖由 <i>龙潜</i> 于 2007-6-28 09:21 发表<br />
&lt;br /&gt;<br />
<br />
十分抱歉，我确实不清楚这张照片的出处，只是原模原样的就从图册里拷过来了。我已经删了帖子里的这张照片，请老兄谅解。

<br />

用了也没关系
hoho
